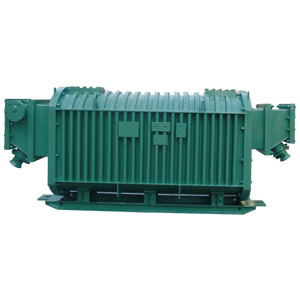

KBSG9 series of mine explosion-proof type dry transformer
- Name：KBSG9 series of mine explosion-proof type dry transformer
- Series：
- Origin：
- Download：
- Contact Us：0474-6812888
Implementation standards
GB8286-1996
GB6450-1986
GB3836-2000
JB/T56152-94
GB/T10228-1997
Use environment and working conditions
- the installation height of not more than 1000m above sea level (usually time), the other for that special environment;
- the ambient temperature is not higher than 40 DEG c;
In the surrounding air relative humidity of not more than 95% (25 C);
- without a strong jolt, vibration and the vertical inclination of not more than 15 degrees in the environment.
Purpose
KBSG9 series of mining transformer (mobile substation) is in methane mixture gas and coal dust and mine environment with explosion danger, also applies to not enough to corrosion and damage to the insulation of the gas and steam environment. The transformer has the advantages of high strength, low temperature rise, good heat radiation and moisture proof performance, easy maintenance and so on.
Product features
The series transformer core is made of low-loss grain-oriented silicon steel, which has the characteristics of low load loss, low load current and low noise. All insulation uses H or C-class insulation materials, with good thermal stability, and can operate at full load for a long time.
Performance part performance
Technical parameters of KBSG 6kV type coal mine explosion proof dry type transformer
.jpg)
Technical parameters of KBSG9 10kV type coal mine explosion proof dry type transformer
Technical parameters of KBSG-T 6kV type coal mine explosion proof dry type transformer
.jpg)
Technical parameters of KBSG-T 10kV mine explosion proof dry type transformer
