Summary

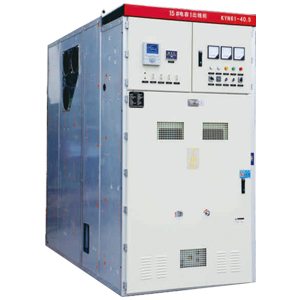

      KYN61-40.5 switch device configuration performance excellent ZN85A, ZN85B vacuum circuit breaker or Schneider SF1, SF2 or ABB Alstom company or HD4 FP series hexafluoride sulphur circuit breaker device. Cabinet with assembling structure and improves the appearance quality and manufacturing accuracy; bus using thermal insulating materials or epoxy coated insulation means, electrode shape optimization, the cabinet body structure is compact, and have perfect "five anti" function.

      KYN61-40.5 switch equipment in 40.5kV three-phase AC 50Hz power system, as a power plant, substation and distribution room of industrial and mining enterprises in the acceptance and distribution of electric energy use; the circuit with control, protection and monitoring functions. In addition to widely used in general power systems, but also can be used in the frequent operation of the site. Conditions of normal use as specified in the use of environmental conditions by GB3906 "3.6-40.5kV AC metal enclosed switchgear".



Model and meaning





Conditions of use

* environment temperature: upper limit of +40 degrees, -10 degrees;

* the altitude does not exceed 1000m;

* air relative humidity: daily average value is less than 95%, on average less than 90%;

The earthquake intensity does not exceed 8 degrees;

It is not suitable for corrosive or flammable gas, steam and other obvious contaminated sites.

Note: beyond the normal use conditions, the user can consult with the manufacturer to determine.
