Summary

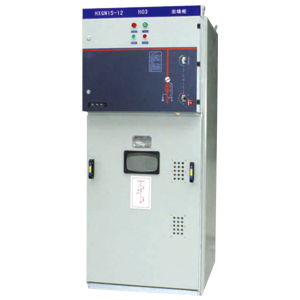

   HXGN15-12 unit type AC metal enclosed ring network switchgear (hereinafter referred to as ring network cabinet) is that we have successfully designed and developed a new generation of high-voltage electrical products in accordance with the requirements of domestic urban and rural power grid transformation while introducing advanced foreign technology. . IEC62271-200: 2003 and GB3906 standard technical performance indicators.

    The main switch, operating mechanism and components of the ring main unit are made by ABB's original or SFL-12/24 switchgear assembled with domestic and imported components, and can also be equipped with ABB's original HAD/American SF6 according to user needs. Circuit breaker or VD4-S vacuum circuit breaker. There are two modes of operation: manual and electric.

    The casing is riveted. The protection level reaches IP3X. And has reliable mechanical interlocking and anti-misoperation functions. The product has the characteristics of small size, light weight, beautiful appearance, convenient operation, long service life, high parameters, and low maintenance.

HXGN15-12 unit type AC metal enclosed ring network switching equipment, the power network is suitable for 50Hz, 12kV, as the electric energy for receiving and distributing.



Type and meaning



Product features

   * environment temperature: upper limit of +40 degrees, -25 degrees;

   * altitude: the altitude does not exceed 2000mm;

   * relative humidity: daily average value not more than 95% months; the average value is less than 90%;

   * environment: the surrounding air is not corrosive gas or combustible gas, water vapor and other obvious pollution.

   * no recurrent severe vibration.
